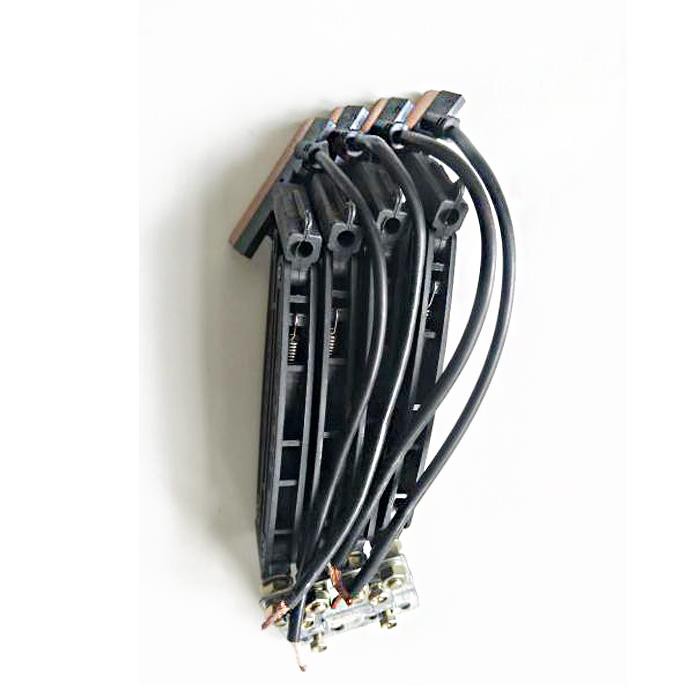

Seamless Conductor Rail Collector

Conductor rail collector - for electrical appliances - slide wire collector (carbon brush) is electrical conductor rail system side pick up the power of main equipment

Send Inquiry

Description:

Conductor rail collector - for electrical appliances - slide wire collector (carbon brush) is electrical conductor rail system side pick up the power of main equipment, it by set brush sliding contact with guide rail, the electrical energy directly to electrical appliances, mobile power supply so as to realize the system.

Conductor rail collector by the mechanical structure of the tension device and direct contact with the slide guide rail set brush of two parts.For conductor rail set, electrical appliances, guide electrical appliances.

Multipolar conductor rail collector, unipolar conductor rail collector, single row type conductor rail collector, combined slide wire collector.(industry: conductor rail, smooth line, sliding wire, mobile transmission power supply)

Single Arm Current Collector

Model	Specification	Weight(kg)	L(mm)	W(mm)	H(mm)
ZG-C3-60	3P 60Amp	0.73	170	60	90
ZG-C4-60	4P 60Amp	0.96	170	82	90
ZG-C6-60	6P 60Amp	1.46	170	120	90

Double Arm Current Collector

Model	Specification	Weight(kg)	L(mm)	W(mm)	H(mm)
ZG-C3-60	3P 60Amp	1.36	450	60	175
ZG-C4-60	4P 60Amp	1.56	450	82	175
ZG-C6-60	6P 60Amp	2.42	450	120	175
