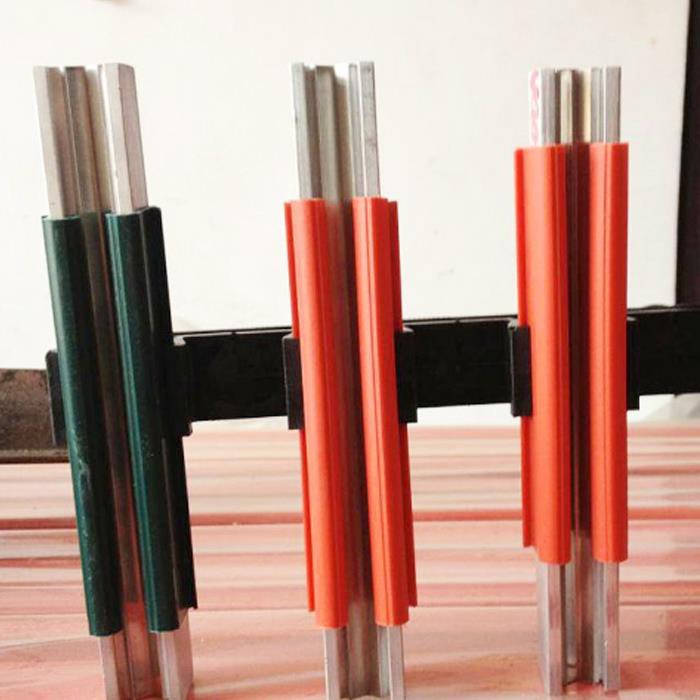

Crane Unipole Conductor Rail

Unipole Conductor Rail is the most widely used product in the industry of sliding contact line, which has the advantages of flexible use, simple installation, convenient maintenance and low cost.

Unipole Conductor Rail is a new type of power line. The conductor is aluminum, with a plastic sheath and a stainless steel belt embedded in the v-shaped slot of aluminum profile. It can save electric energy than steel sliding contact wire. Stainless steel bars enhance wear resistance and extend service life.The joint sheath plays a safe role in preventing dust, rain, snow and electric shock. Simple and compact structure, installation and maintenance, is widely used as mining, metallurgy, chemical industry, machinery, wharf, freight yard, mobile equipment power supply line.

Overview

Quick Details

• Brand Name:Zhonggong Conductor Rail

• Conductor material:Aluminum/stainless steel

• Current:160A 200A 2500A 315A 400A 500A

• Conductor lines inslulator material:PVC

• Temperature at full load(℃):25℃

• Conductor line distance(mm):70

• Rated voltage -AC:550

• Rated voltage-DC:700

• Usage:Cranes,monorails,electric hoists,electric tools

• Standard length:4.5m

Supply Ability

• Supply Ability:50000 Meter/Meters per Month

Packaging & Delivery

• Packaging Details：wooden case or according to the customers' requirement.

• Port：shanghai China
