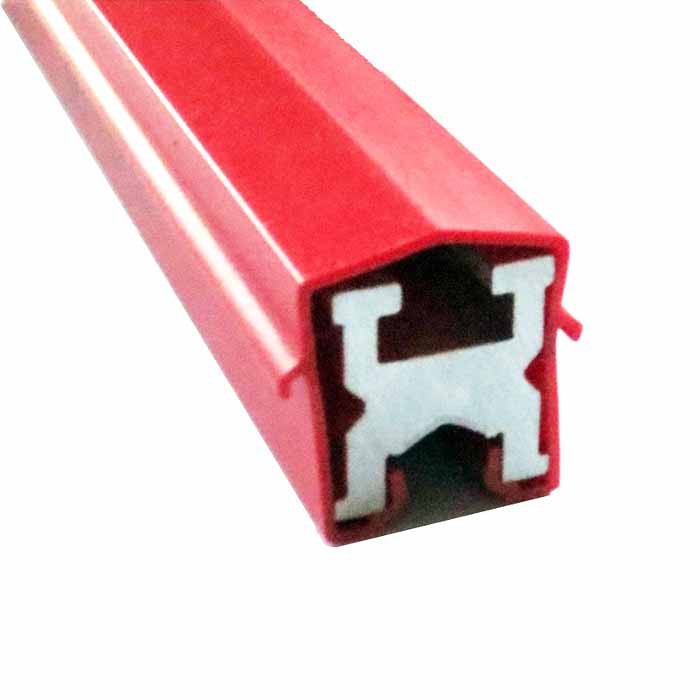

Crane Pvc Housing Copper Bar

Unipolar safety sliding contact line referred to as unipolar sliding contact line, the conductor is a professional conductive aluminum profile, sheathed for soft PVC engineering resin, stainless steel Mosaic a root in the aluminum profile to increase the wear-resisting degree of aluminum alloy, aluminum alloy compared with the traditional Angle steel sliding contact line resistance is greatly reduced, so the single sliding contact line is a new type of energy saving, security, environmental protection new type safety sliding contact line, widely used in machinery manufacturing, metallurgical mining, steel processing, shipbuilding and other industrial and mining enterprises.

ALLMAN Unipole insulated conductor rail system is a modern mobile power supply system . The material of conductor rail can be copper and aluminum . The aluminum conductor is mounted with a stainless strip to make it service much longer life . Any numbers of poles of conductor rail can be installed vertically or horizontally , no matter on straight or curved system . This type of conductor rail can also be used indoor and outdoor.

Conductor Bar Specification Data Sheet

Sizing systems for multiple hoists, motors, and/or multiple cranes For a single crane: Size the conductor bar to handle 100% of the current draw of the largest motor or group of motors, plus 50% of the combined current draw of the other motors on the vehicle. For multiple cranes or vehicles: Determine the current draw for each crane/vehicle, using the method above. Sum all the current draws for each crane/vehicle, then multiply the sum by the appropriate demand factor

Specification and model table of single pole sliding contact line:

Monopole contact line is divided into light contact line and heavy contact lineThe light series sliding contact means rated current not greater than 500A.

The heavy series sliding contact means rated current not less than 630A
