600a Copper Bus Bar

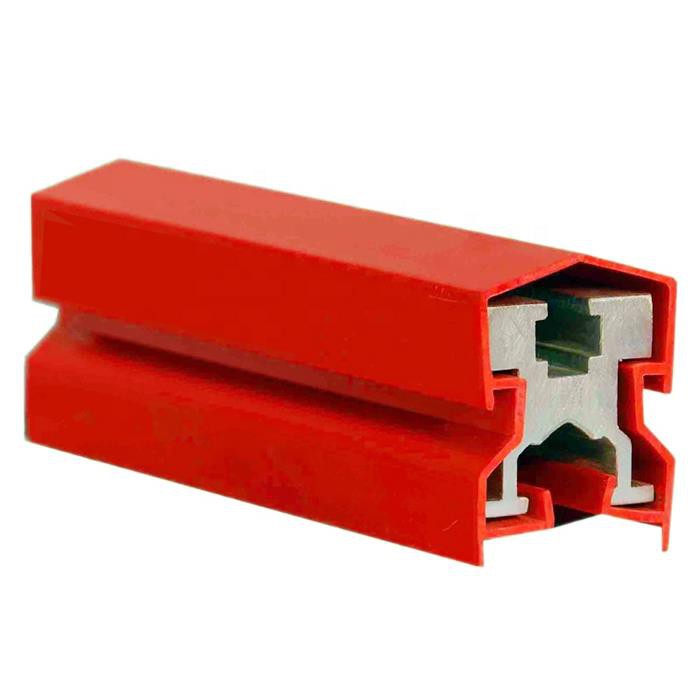

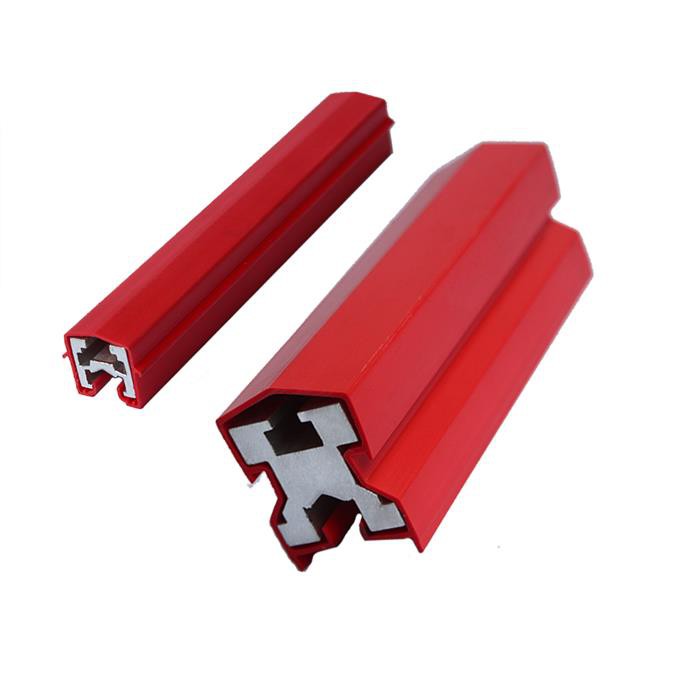

600A copper sliding contact wire, its conductive body is a copper profile with a cross-section of "H", "8", "", safety and energy saving are relative to steel, and its specific gravity is small. The copper material is rolled into an "H" shape. It can improve the integrity and strength on the basis of ensuring a certain conductive cross-sectional area, but the surface of the copper material is low and not abrasion resistant. In order to make the copper profile meet the practicality as a conductive sliding contact wire, the "H" The middle beam is made into an upper arch, and the 304 stainless steel profile with strong abrasion resistance and abrasion resistance is embedded here according to the prescribed process procedure. As a conductive layer of the friction layer of the conductor, the embedded process ensures the stainless steel profile Closely combined with the copper profile, the current from the copper profile passes through the stainless steel to make the conductive block in the current collector in contact with it to transfer the current in the frictional contact, thereby ensuring the continuous current of the mobile device during operation.

The surface of the 600A sliding contact conductor, except for the lower opening to contact the current collector, is longitudinally protected by ABS plastic as a whole. Therefore, there is no conductive exposed part of the sliding contact conductor after installation, which greatly brings about installation and maintenance. Convenient, at the same time, the overall shell protection, so that 600A sliding contact line does not have the functions of dust accumulation and rain, dew, ice, snow invasion. The connection between the guide rail and the guide rail is a dedicated rail connector, which can make the guide rail and the plastic shell Together, the connection ends are safe and reliable, thereby ensuring that the equipment operates safely and reliably. This 600A product has simple and economical maintenance, long service life, high cost performance, and is widely used in places with large current, high frequency of use, and poor environment due to its novel design, reasonable structure, and safe use. Cranes, automobile manufacturing, port loading and unloading and other mobile power supply, the new market can also be used for bus long-distance power transmission. If the 3240 insulating material sheath with good temperature resistance is used, it can also meet the requirements of outdoor and indoor steelmaking, casting and other industries under high temperature and harsh environments.
