Input Voltage: <600V
Output Voltage: <600V
Output Power: 75Amp
Output Frequency: 50-60Hz
Output Current: 0-200A

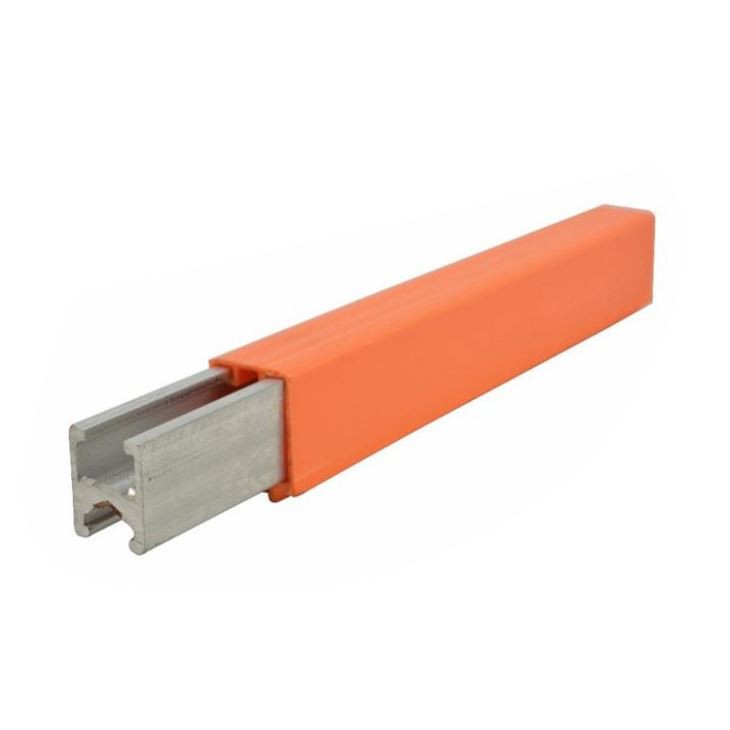

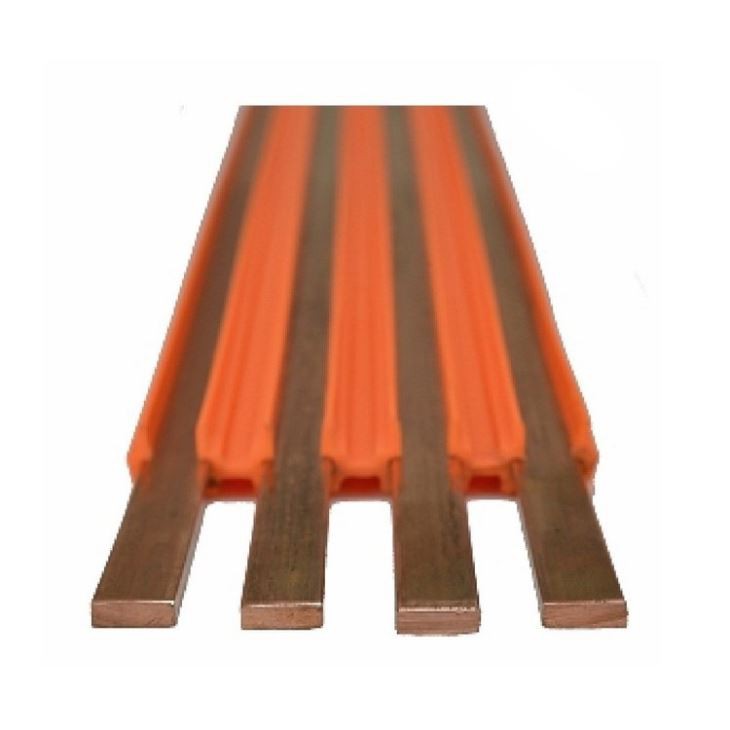

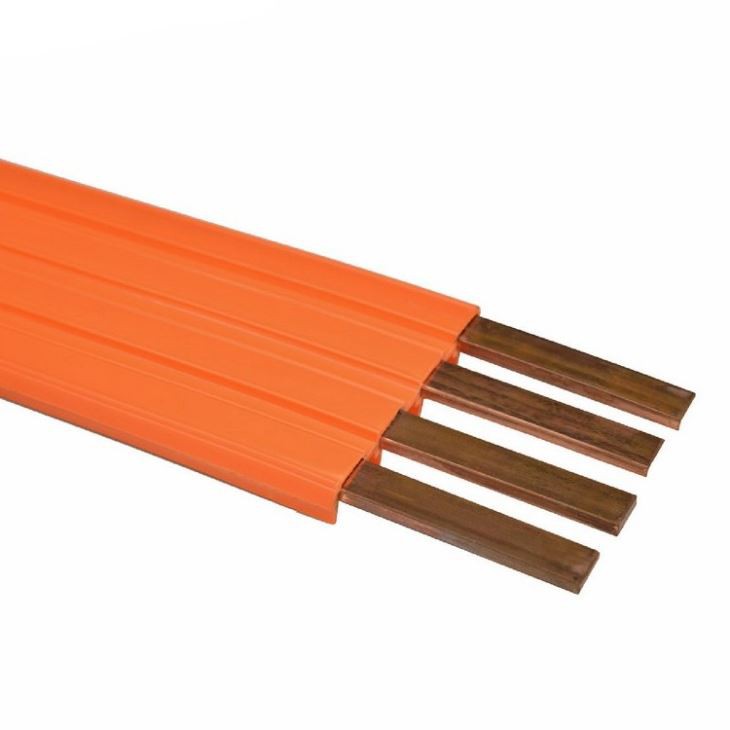

Type: Safety Power Rails for Overhead Crane
Alias: Conductor rail, Conductor bus bar
Voltage: <600V
Application: Overhead crane or moving machine
75A Copper dimension: 2*10mm
100A Copper dimension: 2*2.8mm
Insulator: PVC
Copper purity: >99.9%
Poles: 6P
Attention! The copper thickness and width is crucial for power rails selecting!! Some companies reduce the copper to lower the price in the same ampere rating power rails.
Actually, it sacrifices your safety and privilege. Less copper will make your equipment consume more energy and sometimes the overheat will cause the fire!!
| Type | Capacity (A) | Copper Thickness (mm) | Copper Width (mm) | Weight (Kg/m) |
| Three in one 75A | 75 | 2 | 10 | 0.8 |
| Three in one 100A | 100 | 2.8 | 10 | 1.03 |
| Three in one 150A | 150 | 3 | 10 | 1.14 |
| Three in one 200A | 200 | 3.8 | 11 | 1.42 |
| Four in one 75A | 75 | 2 | 10 | 1.1 |
| Four in one 100A | 100 | 2.8 | 10 | 1.4 |
| Four in one 200A | 200 | 3.8 | 11 | 1.9 |
| Five in one 100A | 100 | 2.8 | 10 | 1.7 |
| Six in one 75A | 75 | 2 | 10 | 1.64 |
| Six in one 100A | 100 | 2.8 | 10 | 2.06 |
