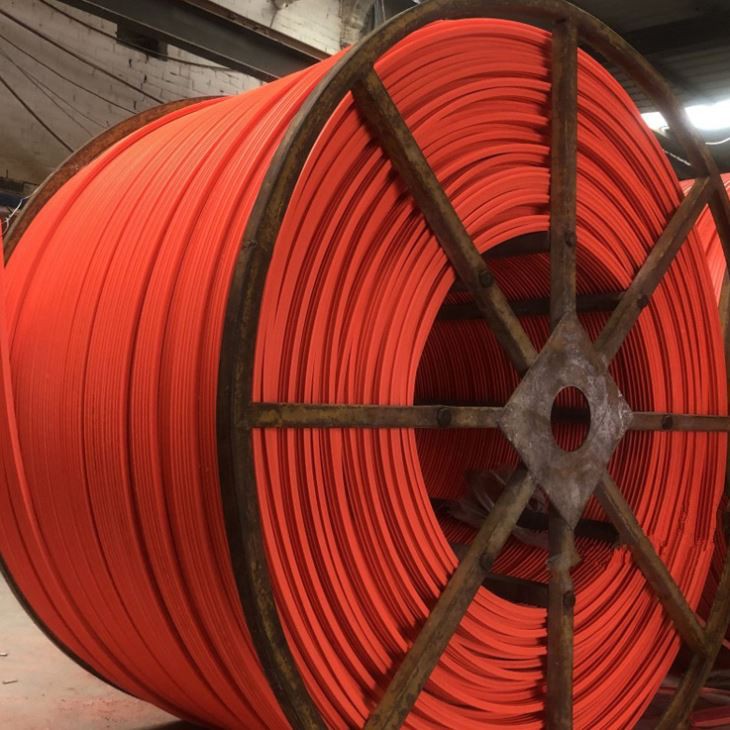

Crane Trolley Conductor

Place of Origin: Henan, China

Type: Insulated

Application: Overhead

Conductor Material: Copper

Conductor Type: Solid

Insulation Material: PVC

Model Number: 3P / 4P / 6P

Rating: 3P;690V;50A-120A

Heat resistance: -30℃---70℃

Appliance: Crane power transmission supply

Color: orange

Conductor cross section: 6,10,16,25,35 square mm

Product Features:

1.safety, stability, no interface (except power supply point), small size, easy installation, economy;

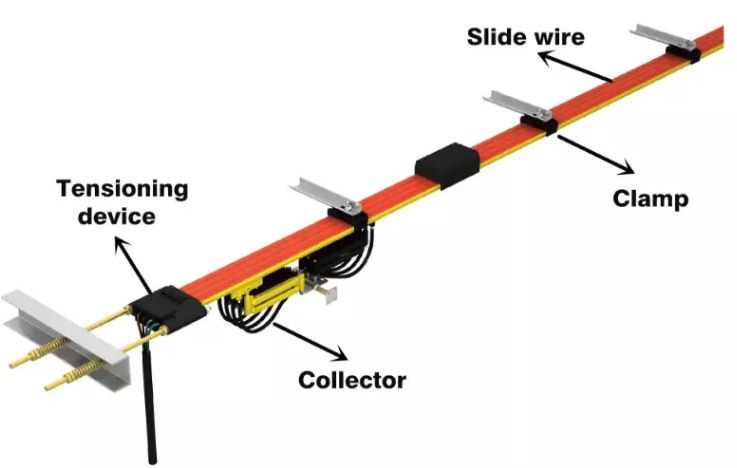

2. No joint sliding contact line is installed without joint, which is simple and time-saving with small space.

3. Seamless sliding contact line is made of special materials, which makes it run smoothly, with fast speed and low noise.

4. The mounting bending radius of the jointless sliding contact line is small, and the minimum bending radius is 750mm.
