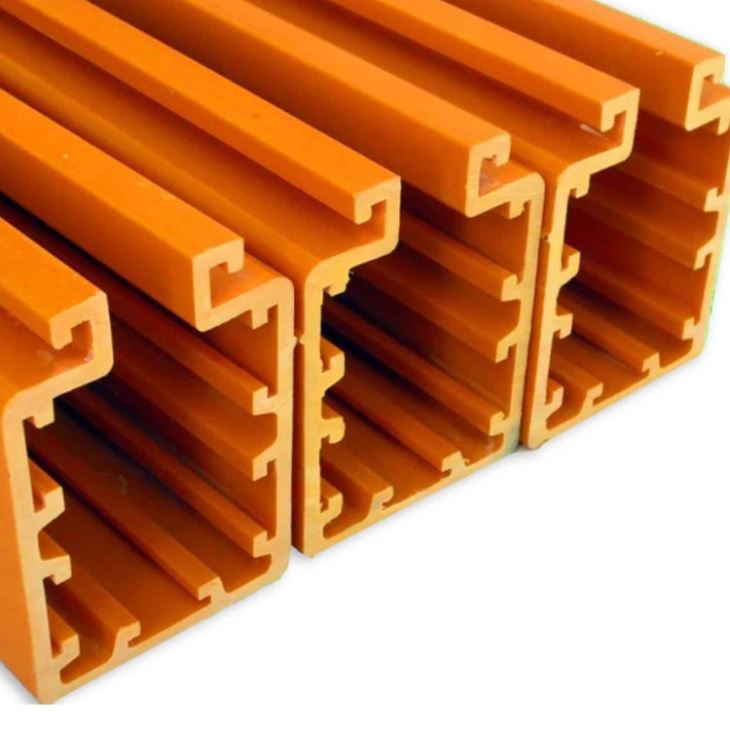

Crane Slip Line

Place of Origin: Henan, China

Material: Copper & PVC

Color: Customer Request

Rated current: 50A-80A-100A-120A-170A-210A-240A

Poles: 3/4/6/8/12

Length: 4meter

Application: cranes,monorails,electric hoists,electric tools.stacking systems

Protection Class: IP23

Certificate: CE

OEM: Avaiable

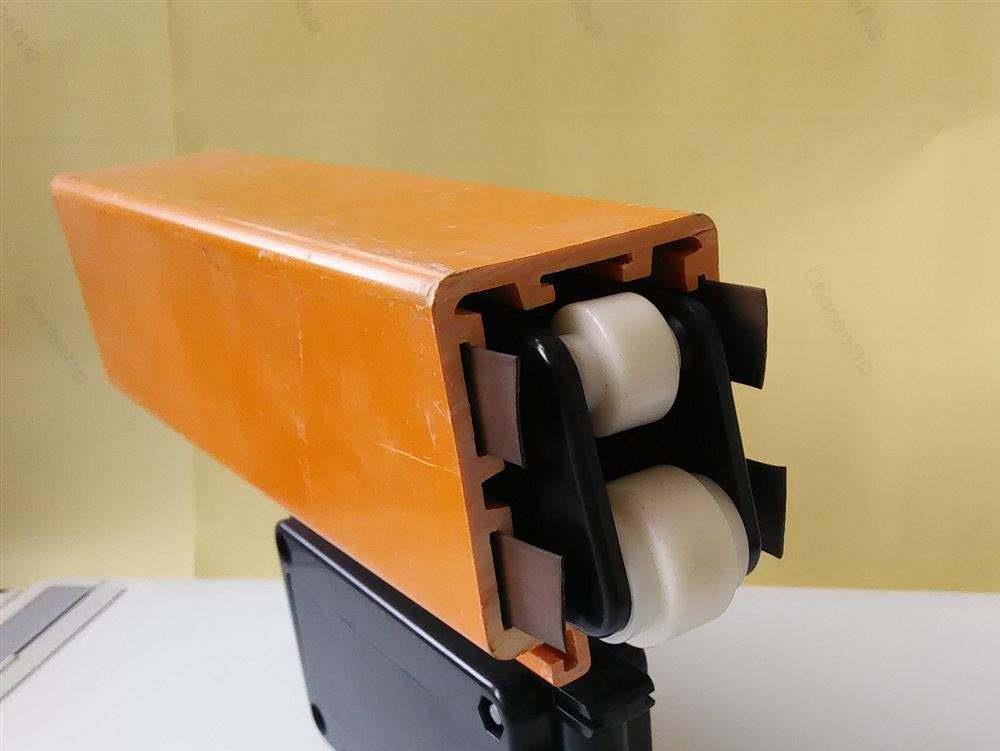

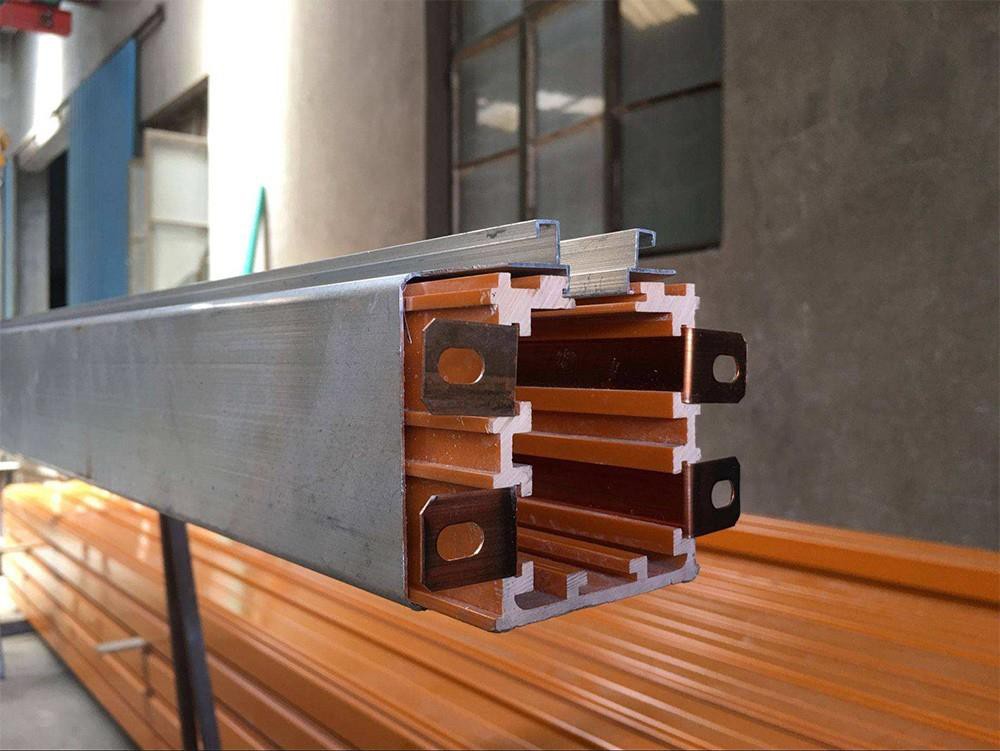

Multipolar tube type sliding contact line is composed of high strength engineering plastic insulated conduit or aluminum alloy protective shell, a conductive copper bar, the multi-stage collector and suspension, a combination of fixed and other components. The characteristics of the products for its compact design, stable performance, safe use is widely applied in logistics automation production line current is small, the use of high frequency and the detection line.

Technical Parameter:

1.50A/80A/100A/120A/140A/170A/210A/300A Current Ranges

2.Standard 3-16 conductor(Option 3/4/5/6/7/10/16 conductor)

3.Copper Conductor

4.PVC Body

5.4m Standard Length.

6.Protection Class:IP23

Advantages

1.Increased safety due to enclosure of conductor material

2.Increased reliability with better collector tracking

3.Compact and light weight for reduced support and space needs

4.Curve sections possible for custom applications

5.Strong resistance to temperature & environmental conditions
